Click here - ... 1948 Bush TV-12 Vintage televisions 1955 Ekco TMB272 ... or scroll down
1953/54 GEC BT5246 1958 KB Royal Star 1963 Philips 23TX381A / 23TX400A 1967 HMV 2647 1960s Toshiba 12SBB
1969 Sony KV-1320UB 1971 Sony TV-110UK 1971 RGD SV237 1983 Sinclair FTV1 1987 Casio TV-400 Old TV publications

1948. Bush Model TV-12

1948 Bush Model TV-12

The landmark Bakelite TV - the 1948 9-inch screen Bush Model TV-12. The
picture above was taken at the IOV show in 2003 where Rewind Museum had a stand.

1948 Bush Model TV-12 1948 Bush Model TV-12

1948 Bush Model TV-12 1948 Bush Model TV-12

1948 Bush Model TV-12 1948 Bush Model TV-12

This set is probably the most well used example of an old TV by television and media.
It is a classic bakelite design which gets away from the box shape that televisions
had in those days. This one is in very good condition and is a valued part
of the museum. The TV-12 had a 9-inch screen and a single channel tuner.
In 1950 the TV-22 was introduced with a 5 channel tuner (still with a 9-inch screen).
It looked exactly the same as the TV-12. In 1953 Bush upgraded
the set with a 12-inch screen and that model was called the TV-24.



1955. Ekco TMB272 portable TV.

Ekco TMB 272 Portable TV

The is an amazingly heavy 1955 Ekco TMB 272 valve (tube) portable TV.
This TV was on our stand at the 2006 IOV show and a visitor gave us some interesting
information. He used to work for the BBC and in the late 1950 they had quite a large
number of these Ekco TMB272 portables. He said they were used as outside broadcast
monitors. TV presenters, in front of camera, liked to see themselves on these
monitors to check the shot was fine.

Ekco TMB 272 Portable TV Ekco TMB 272 Portable TV

Ekco TMB 272 Portable TV Portable 1955 Ekco TV

There is an interesting story behind this particular TV. It was acquired early in
2006 and the owner originally bought it from an antique shop where she lived.
This particular shop had been clearing out some stuff from a house locally.
The owner had owned this TV from new and was Richard Todd the actor.
He was probably best known for his leading role in "The Dambusters" film
but he stared in many films including "The Longest Day". During the second
world war, in the British army, he did actually participate in the allied
invasion of Normandy. The Antique shop was called "Aladdin’s Cave"
and was in Grantham (UK) where Richard Todd lived.



Background -

When I was a very young, our first set was a 1954 GEC BT1746 3-channel 14-inch desk-top
model. This lasted many years. Always being interested in Electronics, at
the age of 17 while in the 6th form at school, I went into business with a
friend in the same class. This was 1968. We bought second hand TVs from a
trade supplier, did a little work on them, if needed, and sold them.
We also, on occasion, repaired the teachers televisions. After a few
years I became a teacher and later a University lecturer but
little did I know in those days that eventually, 20+ years later,
I would be back in business. This time as the MD of a
successful satellite TV business.

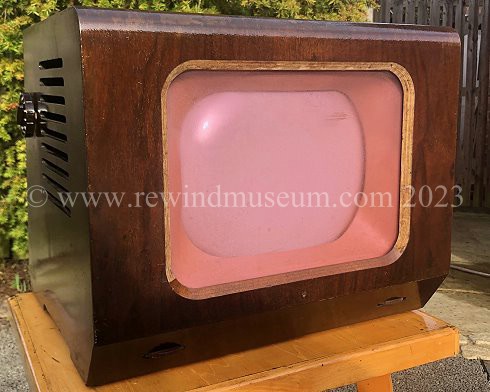

Another interesting set I owned was a 1953 Pye console.
(Technical stuff - This was a very advanced set in it's day
with a 13 channel switch tuner gated AGC and flywheel Sync.)
The chassis was mounted on a sloping shelf in the console so that
is glided out. The coil assembly on the CRT used a complete
quick release spider chassis. It was a dream to service.
It was an old set when I bought it in the 1970s but due to it's size
I regret to say that I could not store it. There are few items
I have not kept but this unfortunately was one of them.
Recently a very similar 1953 GEC 14-inch TV has been donated to the museum. See below
If you look at the side of the 1954 model in the advert below you will see
3 controls including a channel changing knob towards the front.
In the 1953 model this control is underneath and is part of a GEC tuner upgrade
under the TV set and was to increase the channels capabilty from 1 to 3. This
was so that viewers could tune into the ITV as well as the BBC.

1954. GEC BT1746 14-inch TV.

1953 GEC B.T.1746 14-inch TV

1953. GEC BT5246 14-inch TV.
with GEC tuner upgrade.


1953 GEC B.T.5246 14-inch TV 1953 GEC B.T.5246 14-inch TV

1953 GEC B.T.5246 14-inch TV 1953 GEC B.T.5246 14-inch TV

1953 GEC B.T.5246 14-inch TV 1953 GEC B.T.5246 14-inch TV

1953 GEC B.T.5246 14-inch TV 1953 GEC B.T.5246 14-inch TV

This 1953 GEC 14-inch TV was a single tuner only TV. When ITV started in 1955 owners of this TV
were able to have it upgraded to a 3 channel tuner with the GEC tuner upgrade unit that you can
see under the TV. In 1954 the 3 channel tuner was built into the set and the knob on the front
of this 1953 model was on the side of the 1954 model. (Resulting in three knobs on the side instead of two)
The advert below show the price to be 60gns (£63) for the 1953 model and 65gns (£68.25) for the 1954 model
(advert above). In 1953 and 1954 this was a great deal of money. It is likely that the weekly wage
(manual labour) would have been under £10.00

1953 GEC B.T.5147 14-inch TV

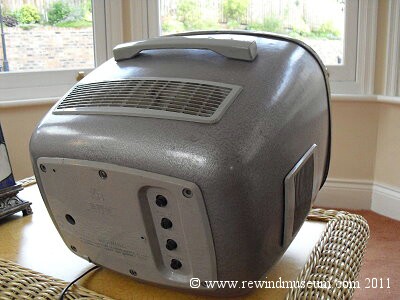

1958. KB Royal Star portable 17" TV.

This KB television (PVP20) was classed as portable but weighed 7.5 kg. It does have a lighter fibreboard case
and a carrying handle but like most early "portable" TVs, it was basically a standard TV with a handle fitted.
Apart from the attempt to make a lighter case, the chassis was the same as a desktop model.
The price in 1958 was £44.2s.4d + purchase tax.
KB stood for - Kolster Brandes (Ltd) from Foots Cray, Sidcup, Kent. UK.

KB KB

KB KB

KB KB

KB



1963. The Philips 23TX381A TV next
to the EL 3400 on the front of the
1964 VTR owners manual.


1st ever domestic video tape recorder? Library picture. The Philips EL3400 Manual. 1964

Philips TX381A TV. Philips TX381A TV

At last we have this old black and white TV in the museum from 1963 and 1964. The plan is to try to reproduce the picture
on the front of the VTR manual showing the EL3400 alongside the 23TX381A TV, on a table, on red carpet,
with blinds behind (and a plant?).
This is a dual standard 405/VHS - 625/UHF table model containing 23 valves (tubes) and a A59-11W 23" cathode ray tube.
There was also a 23TX400A that looked identical to the 23TX381A. This 23TX381A is in excellent condition.
The Philips 23TX381A 23" TV was introduced in 1963 and was also sold through 1964.
More pictures and notes soon.



1967. HMV Model 2647
Dual Standard TV. VHF and UHF


HMV Model 2647

This television was my own TV in the early 1970s. I bought it second hand and used it
for many years. It has been stored ever since and is now part of the on-line collection.
It was taken to the first IOV exhibition in 2003 when we had a stand and the public
really enjoyed seeing it. Many comments were made. The service manual and a spare
chassis are in the collection. During it's use in the 1970s I repaired it several times.
I seem to remember problems with the system switching from 405 line VHF to the
635 line UHF being a problem as it was with many duel standard sets of the day.

HMV Model 2647 HMV Model 2647

This TV used the Thorn 1400 Chassis and was the same as the Ferguson Model 3652
apart from some minor cosmetic differences to the cabinet and switches. In
particular, the Ferguson had a silver strip behind the controls whereas the
HMV was wood all the way down to the bottom.
In my opinion, the HMV has clearer line but then I am biased.
The Ferguson Model 3652 can be seen at www.tvmuseum.co.uk/
"South West England Vintage Television Museum" on the Black and White TV page.



Mid 1960s. Toshiba 12SBB TV.
Black and white portable TV.
12 volts, Made in Koria by the Japanise company - Tokyo Shibaura Electric Co. Ltd.
Toshiba merged with Tokyo Shibaura Electric Co. Ltd. in 1939. They became Toshiba Corporation in 1978

Toshiba 12SBB. Toshiba 12SBB.



1969. Sony KV-1320UB Trinitron
13" (33cm) colour TV.


Sony KV-1320UB Trinitron colour TV

In 1968 the KV-1310 colour TV was introduced by Sony. This was the first in Sony's exclusive range of
Trinitron color TVs. This model offered approximately twice the brightness of TVs using conventional
shadow-mask tubes. Indeed, the design offered, in terms of brightness, color fidelity, and simplicity
of operation, a picture quality way ahead of any rival television set. It was a milestone product.
The improvements were mainly due to the introduction of Sony's new Trinitron cathode ray tube.
The tube was also flat vertically, a side-effect of the internal vertical wires in the aperture grille,
and this gave it unique and attractive look. The KV-1310 was available first in Japan and the USA.
In 1969 this TV was introduced into the UK with model number KV-1320UB. This model had a PAL
decoder for use in the UK. The timing was perfect as colour TV started in 1969 in the UK! This
sample is in very good condition. It is complete with original manuals and cleaning cloth.
This particular set was purchased in the UK in 1971.

Sony KV-1320UB Trinitron colour TV

Sony KV-1320UB Trinitron colour TV Sony KV-1320UB Trinitron colour TV

Sony KV-1320UB Trinitron colour TV Sony KV-1320UB Trinitron colour TV

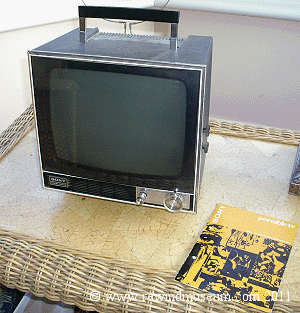

1971. Sony TV-110UK

Sony TV110UK

Sony TV110UK Sony TV110UK

This set was recently donated to the museum. It had originally been purchased on the
2nd Nov 1971 from Peter Jones (John Lewis an Company Ltd.) Sloane Square, London SW1.
It is an ideal addition to the museum as it is exactly the sort of 12 volt / 240 volt
small TV that would have been used with the reel to reel video recorders and the early
VCRs of that era (like the ones on this site). It has an 11-inch 90 degree CRT
(Cathode Ray Tube) and UHF tuner. Weight 15lb and 7oz. It is complete with
manufacturers packaging, guarantee card and Sony advertising pamphlet.



1971. RGD SV237 black & white UHF TV
Manufactured by ITT Comsumer electronics.

RGD RGD

RGD RGD

This is also a TV that I owned from the 1970s, hence it's inclusion.
An interesting feature is the original purpose built stand
that came with the set from new.
This is a single standard black and white TV. Later than the HMV dual standard TV above.
Dual standard sets were no longer available new by 1971 but it was still only a black
and white TV. Colour TV started in 1967 with BBC2 and extended to BBC1 and ITV in
1969 but it was into the mid 70s before colour sets were more widely found in
the home. Black and white sets did continue for many years after the mid
70s but usually only as small portable TVs.



Sentra TV

Sentra TV Sentra TV

Sentra TV Sentra TV

More information coming soon.



Pocket TVs

1983. The Sinclair Pocket TV FTV1.

The Sinclair Pocket TV

The Sinclair Pocket TV The Sinclair Pocket TV

The Sinclair pocket TV set was officially launched on September 16th 1983. It was only available direct by mail order.
The price was £79.95 (inclusive of VAT and delivery) with the Polaroid flat batteries at £9.95 each in packs of three. The
set was less than 1/2 of the price of the Sony Watchman (1982). The set has a 2in. cathode ray tube (CRT) screen and weighs 9½oz.
The Sinclair Pocket TV was multi-standard with auto switching between most u.h.f. standards worldwide (except for SECAM).
The circuitry is mostly contained within a single integrated circuit which was manufactured by Ferranti but was developed
by Sinclair Research and Ferranti. The flat-screen tube was manufactured by Timex and the set was assembled by Thorn.
The Sinclair flat-screen TV has the electron gun at the side of the screen, emitting electrons at right angles to the
line (plane) of vision. The phosphor coated screen is at the back of the tube, not the front. This made for a very
compact CRT compared to the type of CRT in normal television sets where the electron gun is directly behind the screen
and tend to stick out of the back of the set. An article in the November 1983 issue of Television Magazine
announced the arrival of the Sinclair Pocket TV.



1987. Casio Pocket TV-400.

Casio Pocket TV-400

Casio Pocket TV invoice

The first portable mass-produced TV with liquid crystal screen (LCD) was the CASIO TV-10 (1983) and in
May 1985 the Casio TV-1000 was launched in Japan, this was the first pocket TV with a Color LCD. The
TV-400 was introduced in 1987 and this sample was purchased in 1989. See invoice above - price £89.95.



TV Magazines and books.

Practical Television magazine. June 1950.

Practical Television magazine. June 1950.

Volume 1. Number 3.



Popular Science Magazine 1971

Popular Science Video Dec 1971 issue

An interesting new invention??



The museum on tour

Making a donation.

The Rewind Museum is a non-profit making endeavor. The web site and the touring exhibitions are run on
a voluntary basis. Donations, not money, just old items you no longer want, are always welcome.
If you have something that you think would be of interest, please contact us with the details.
We can send in a courier to pick them up. (Even an international courier). Thank you.



Also see www.1952chevytruck.com

The 1952 Chevy truck

The 1952 Chevy truck web site.




Link to our main site. Satellite TV.

Sponsored by Vision International.
Note. One of our businesses, Vision International (established 1991) sponsors the
Rewind Museum including financial support for this web site.
Vision International is one of a group of businesses that we have in the field of
Satellite TV. This is a link to our sponsor.

Dreambox DM8000 60cm Clear dish

tune in an extra 8000 channels? Watch the world? Links to some of the pages are below,

Sky Receivers Freesat Receivers Transparent Dishes Motorised systems High Definition Receivers. Caravan satellite
LNBs Catalogue index page of all satellite products. Technomate Installation equipment. Satellite finder meters

The Rewind Museum web site is maintained on a none profit
making voluntary basis. Our main business website is at
www.satellitesuperstore.com/cat.htm
Our main business is satellite TV and we are a specialist satellite company.
We supply satellite goods in the UK and worldwide including fixed and
motorised satellite systems, accessories and installation equipment.




Web site copyright © 2011 Vision International. All rights reserved.
For all questions & comments about this site's content contact Dave at Rewind
Museum (We only accept questions in English. We do not open attachments.)
