(After clicking on a link below ..........) Vintage Betamax (..use the back button to return here)
Jump to - Sony LV-1901 SL-6200 SL-7200 SL-7200 SLO-340 SL-3000 Sanyo VTC9300PN Toshiba V5400

1975 - The 1st ever Betamax VCR.

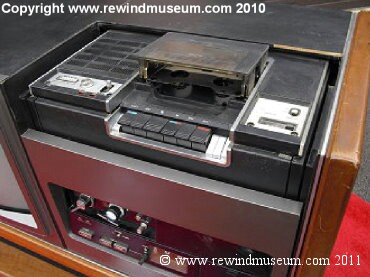

The Sony LV-1901


Sony lv-1901 Sony lv-1901

Sony lv-1901 Sony lv-1901

Sony lv-1901 Sony lv-1901

Sony lv-1901 Sony lv-1901 Sony lv-1901

We are very pleased to have a LV-1901 in the museum. We are delighted to have this 1st ever Betamax unit in the
collection. The Sony SL-6200 was packaged with a 19" colour "Trinitron" TV in a wooden cabinet. The original
price was $2295. It was all in a teakwood cabinet. Included was a 24-hour timer and a camera input. The TV was
not just a monitor but had a built in tuner and there was a second TV tuner for the VCR. This meant that you
could record one channel and watch another. The first Betamax VCR was part of this Sony combined video and 19"
TV console. In Japan it was called a Sony LV-1801 and the VCR inside was called an SL-6300. In America this console
was called an LV-1901 and the VCR inside an SL-6200. This unit was introduced in the November of 1975. This unit
has some stickers on showing it was sold in January 1978 and serviced in 1979. It would have been on sale in the
USA for a few years. It is a heavy unit and runs on castors. Notice the tuner and timer units at the front in a
separate panel. Also notice the mechanical timer that looks very similar to the
stand-alone Sony TT-100 Umatic timer from 1972.

Sony lv-1901

Sony lv-1901

Another SL-6200 is below. Finally notice the similarity in the knobs with the later SL-7200
which is below the SL-6200. Scroll down to see them.



1975 - The 1st ever Betamax VCR.
The Sony SL-6200.


Sony SL-6200 Sony SL-6200

Sony SL-6200 Sony SL-6200

Sony SL-6200 Sony SL-6200

The Sony SL-6200. No tuner but AV inputs and outputs. Mechanical counter. The plain black
sides would suggest that it was originally inside another LV-1901 console. The sides would
be hidden in an LV-1901 and so did not need to be a decorative wood finish..
We are delighted to have an SL-6200 in mint condition in the museum.



1976 - The 1st ever stand-alone
Betamax VCR.
The Sony SL-7200 & SL-7200A


Sony 7200

In the spring of 1976 Sony released the first stand-alone Betamax VCR, the SL-7200. This was an updated SL-6200
(without the console) but with a tuner. The 7200A pictured here, also from 1976 is simply an SL-7200 but with
added audio video and microphone inputs. (The standard SL-7200 only had audio and video outputs.) Notice that
the SL- 7200 has a stylish front and wood sides which sharply contrasts with the SL- 6200 where the sides were
hidden. This SL-7200 is also in mint condition. Dates and details from www.sony.net This museum is primarily
about milestone first achievements in consumer technology. We are delighted to have a sample of the first ever
stand alone Sony Betamax VCR (with embedded tuner) in the museum. This unit is in mint condition.

Sony 7200 Sony 7200

Sony 7200 Sony 7200

Sony 7200 Sony 7200

Sony 7200 Sony 7200

The original clear dust cover is included.

Sony 7200

We even have the original manufacturers carton. The unit is an NTSC version.

Sony 7200 Sony 7200



1977 - The 1st ever long play
Betamax VCR.
The Sony SL-8200


Sony SL8200

Sony SL8200 eject Sony SL8200 front

Sony SL8200 rear sockets Sony SL8200 long play Sony SL8200 serial number plate

All of the packaging and accessories is complete. Warrantee forms are in the packet on the side of the box.
When you look in the bottom of the box you can see the dust cover in a sealed bag

Sony SL8200 box closed

Sony SL8200 box open Sony SL8200 box open

Sony SL8200 box open Sony SL8200 box open

All of the paper work is complete.

Sony SL8200 manual Sony SL8200 manual open

Sony SL8200 quick reference cards Sony SL8200 papers

Sony SL8200 dealer history Sony SL8200 cassette information.

Unopened sealed pack,

Sony SL8200 unopened club offer

About this unit.

The Sony SL-8200 Betamax VCR. This unit was donated in 1996 by a local specialist video store that dealt with
pro-industrial equipment. They were throwing them out when we were visiting them. It is in it's original box
with all of the packaging and manuals. Looks like it was never sold although could have been a demo model. They
actually gave us two (fully boxed and new) and I sold one a few months later. I Don't usually sell anything but
at the time I was short of space and I had not really thought out everything the museum was going to keep. Even
so it did not stop me keeping one! This was stored in a different place and I was able to get hold of it today
(14th March 06). There place where there would be two tuner knobs is blanked off. This unit did not have an
internal tuner to record TV programs. It came from a pro dealer where most VCRs were sold without domestic tuners
and so this is not surprising. It is a 110V unit and NTSC and yet it came from a UK dealer which is strange.
It may have been stock for supply in video standards conversion applications. The dealer that gave it to us was
in Newcastle not London (as per paper work above) and so the unit must have been imported by the London dealer
and supplied to the Newcastle dealer. The original US dealer is also on the paper work. The fact that it is
absolutely new and complete makes it very interesting. The unopened pack seems to contain photos but we have
decided not to cut open the sealed polybag envelope. It says "Betamax programs collection for Betamax owners."
If anyone has details of the contents of this pack, please let us know.

General information.

The Sony SL-8200 (1977). This is a second generation Betamax VCR, It was the first Betamax to have two recording
speeds The new 1/2 speed capability provided 2 hours recording time on the new L-500 Beta videocassette. This
was to try and compete with the new VHS VCRs which offered 2 or 4 hour of recording time.



1977 - The 1st ever portable Betamax
VCR. The Sony SLO-340


Sony SL0-340 first portable Betamax. Sony SL0-340 first portable Betamax.

Sony SL0-340 first portable Betamax. Sony SL0-340 first portable Betamax.

Due to the use of plastics in the case, this unit is lighter than the first (JVC) VHS portable video recorder. It is
a valued addition to the museum. This was classed as the professional version with a 10-pin J-type screw-on barrel
camera connector and other pro features. The domestic version was the SL-3000 (see below) and the SL-3000
was introduced in 1980. Some web sites claim the SL-3000 was the first portable Betamax unit but the SL0-340
was earlier. They are, however, very similar to look at - see the SL-3000 below.



1980 - The 1st ever domestic portable
Betamax VCR. The Sony SL-3000


Sony SL-3000 first domestic portable Betamax. Sony SL-3000 first domestic portable Betamax.

Sony SL-3000 first domestic portable Betamax. Sony SL-3000 first domestic portable Betamax.

It is often the case with consumer electronics and cameras that the domestic version is black (like the SL-3000) and
the "pro" version (like the SL0-340) is cream or light grey.



1978 - The Sanyo VTC9300PN.

Sanyo VTC9300PN. Sanyo VTC9300PN.

Sanyo VTC9300PN. Sanyo VTC9300PN.

The 9300 was the 2nd Betamax VCR from Sanyo to be introduced into the UK. (The 9100 was the 1st in 1977).
This unit is in mint condition. It is large and heavy with mechanical keys. Interesting features, The
digital display could be switched between clock and counter. A wired remote was included.



1979 - The Toshiba v5470.

The Toshiba V-5470B The Toshiba V-5470B with manual and brochure

The Toshiba V-5470B The Toshiba V-5470B

The Toshiba V-5470B The Toshiba V-5470B

The Toshiba V-5470B brochure The Toshiba V-5470B brochure

Toshiba v5470 VCR (Betaformat V-5470B Colour Video Recorder). Acquired by the museum in 2003. Features - Picture
search, variable speed play, still frame, slow motion and up to 2 times normal speed adjustable by a wheel under
the front of the machine, index search (Toshiba called this Quick Select) that works. An Advanced timer. The three
event timer could be programmed either as one-off events or on at the same time each day. Liquid crystal timer
display in 1977! This consisted of black digits on a yellow background.

The Toshiba V-5470B

The camera kit above is the Toshiba TA-11 video camera and is in the V-5400B brochure as the matching camera for
the V-5470 VCR. There is very little information on the Internet about this Betamax VCR. Indeed the only library
picture I could find was the rather poor one below. This unit is quite large and heavy but due to the pleasant
wood surround, it is an attractive unit. It is also quite a well specified unit for 1979. This museum example is
very good condition and comes with a manual and manufacturers brochure.

Library picture of the Toshiba V-5470B

The British company "Bush" cloned the V-5470B under their own name, The Bush model was the BV6900A which had a
silver case compared to the Toshiba's woodgrain case.



Anomalies and questions.

Model Numbers.

It seems that the model number for products in Japan minus 100 produced the US model number. So - when we see
the first ever Betamax unit in Japan is the SL-6300, this was called SL-6200 in the States. The SL-7300 was called
the SL-7200 and the SL-8300 was called the SL8200. This was also true for the Sony Umatic VCR system of model
numbers. The first ever Umatic was the VR-1100 in Japan (a player only) but in the States it was called the VR-1000.
The first ever VCR (player and recorder) was the VO-1700 but it was the VO-1600 in the States.

Was the SL-6300 (or SL-6200) only built into a console unit - the LV-1901 (or LV-1801)?

Many web sites suggest this was the case and clearly the SL-6200 above with it's black sides can be identified as
having been inside an LV-1901. However, one of Sony's web sites shows a 6300 with attractive wooden sides. Clearly
this was a stand alone unit as these sides would have been lost in an LV-1901. You can see below the picture of this
unit. It is also clear that apart from the sides, it is identical and does not have a built in tuner unit even
though it is a stand alone unit. The Tuner unit in the LV-1901 being a separate panel.

Sony SL-6300.

It therefore follows that only the SL-7200 (or SL7300) can be considered as the first Betamax fully "domestic"
"stand-alone" VCR as it was the first with a built in tuner unit. The SL-6200 was ONLY a video tape recorder and
by itself could not record TV programs. That is to say the inclusion of a tuner is a pre-requisite to the "domestic"
description along the same lines as the Philips N1500. It can also be argued that a domestic VCR should include
a TV tuner AND a timer. The Sony LV-1901 clearly was the first ever Betamax unit in 1975 and contains both
a tuner and a timer (and TV).

Sony SL-7200
